Customized Balance Forklift 2000kg 3m Electric Pallet Stacker
Product Overview
The full electric pallet stacker is designed for efficient loading, stacking, and short-distance palletizing operations. Its simple structure offers flexible operation with excellent micro-control capabilities and high safety performance. Ideal for working in confined spaces, this stacker can access ship cabins, carriages, and containers for palletized goods handling.
Technical Specifications
| Model |
CDD1030 |
CDD1530 |
| Load Capacity |
1000 kg |
1500 kg |
| Lifting Height |
3000 mm |
3000 mm |
| Load Center |
500 mm |
500 mm |
| Fork Size |
1220×100×40 mm |
1220×100×40 mm |
| Ground Clearance |
30 mm |
30 mm |
| Driving Speed (Full Load) |
4 km/h |
4 km/h |
| Battery |
24V/210A |
24V/210A |
| Overall Dimensions |
2170×1570×2100 mm |
2170×1570×2100 mm |
Key Components

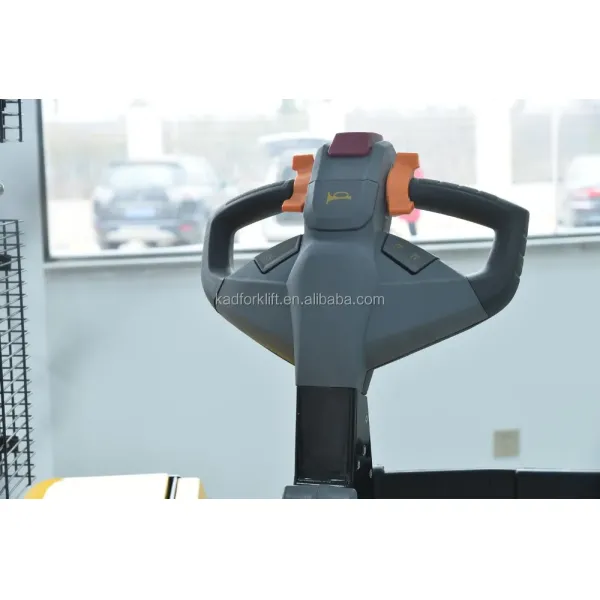

Control Handle
Brand: KAD - Domestic premium control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.
Operation Panel
Combined key, battery indicator, and emergency switch. Functional and aesthetically designed for comfortable operation.

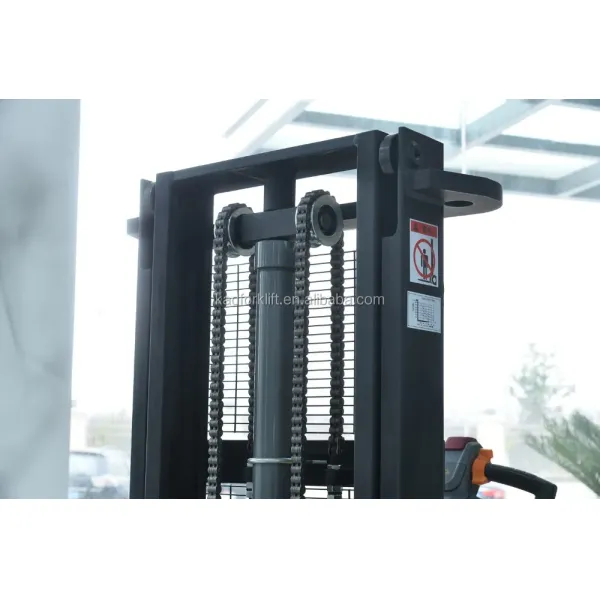

Lifting Mechanism
Strong cylinder and chain system ensures smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
Main Features
- Side-positioned drive system for enhanced stability
- Robust caster wheels for easy maneuverability
- Stepless speed regulation for precise control
- Polyurethane tires for durability
- Compact design for narrow space operations
Frequently Asked Questions
Q: What is your terms of packing?
A: Standard packing includes paper package and iron pallet. Branded packaging available with authorization.
Q: What is your payment terms?
A: 30% deposit, 70% balance before delivery with product photos provided.
Q: What are your delivery terms?
A: Available terms include EXW, FOB, CFR, CIF, DDU.
