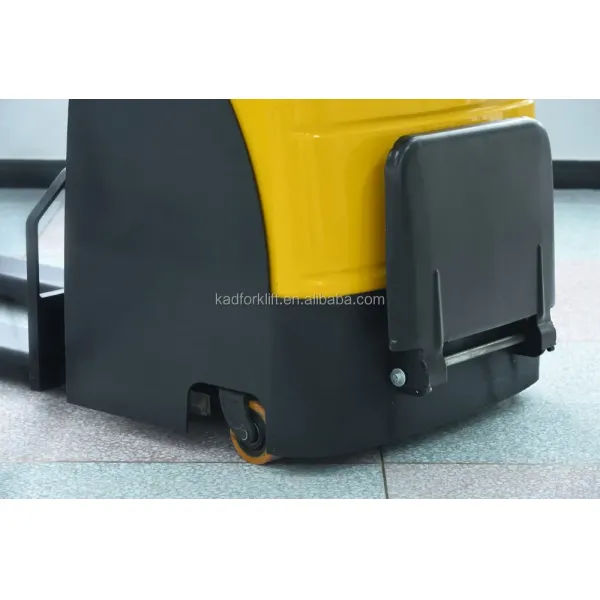

Wonderful Full Platform Electric Stacker with 5m Lifting Height
The Wonderful Full Platform Electric Stacker with 5m Lifting Height is designed for efficient loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-control capabilities, this stacker offers high safety performance. It's particularly suitable for operations in narrow passages and confined spaces, capable of working in ship cabins, carriages, and containers for palletized goods handling.
Product Parameters
| Model | | CDD1030 | CDD1530 |
| Load Capacity | kg | 1000 | 1500 |
| Lifting Height | mm | 3000 | 3000 |
| Load Center | mm | 500 | 500 |
| Fork Size | mm | 1220*100*40 | 1220*100*40 |
| Ground Clearance | mm | 30 | 30 |
| Pedal Length | mm | 410 | 410 |
| Handler Height | mm | 1490 | 1490 |
| Outer Distance Between Forks | mm | 685 | 685 |
| Inner Distance Between Forks | mm | 345 | 345 |
| Tyre type | | Polyurethane | Polyurethane |
| Control Way | | Handler | Handler |
| Speed Regulation Way | | Stepless Speed Regulation | Stepless Speed Regulation |
| The Min. Turning Radius | mm | 1500 | 1500 |
| Driving Speed with Full Loads | km/h | 4 | 4 |
| Gradient | ° | 3°/5° | 3°/5° |
| Battery | V/Ah | 24V/210A | 24V/210A |
| Driving Motor | KW | 1.2 | 1.2 |
| Lifting Motor | KW | 2.2 | 2.2 |
| Tyre Size | mm | 300/250 | 300/250 |
| Overall Size | mm | 2170*1570*2100 | 2170*1570*2100 |
| Weight | kg | 900 | 900 |
| Reference Working Time | h | 6 | 6 |
| Increased height each tonnage | mm | 1600/2000/2500/3000/3500 | 1600/2000/2500/3000/3500 |
| Max height | mm | 2100/1600/1850/2100/2350 | 2100/1600/1850/2100/2350 |
Machine Parts
Control Handle
Brand: KAD
Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD movements with precision.
Operation Panel
Features a key, battery indicator, and emergency switch. The functional panel with beautiful design makes operation intuitive and efficient.
Machine Parts
Strong cylinder and chain system ensures smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
Main Features
Side-positioned drive system with strong caster wheels ensures excellent stability and maneuverability.
